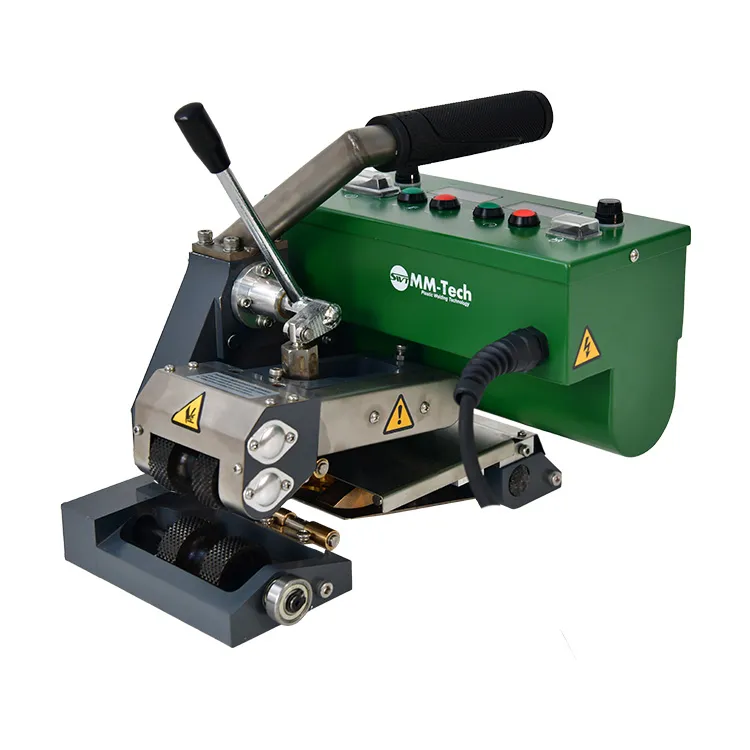

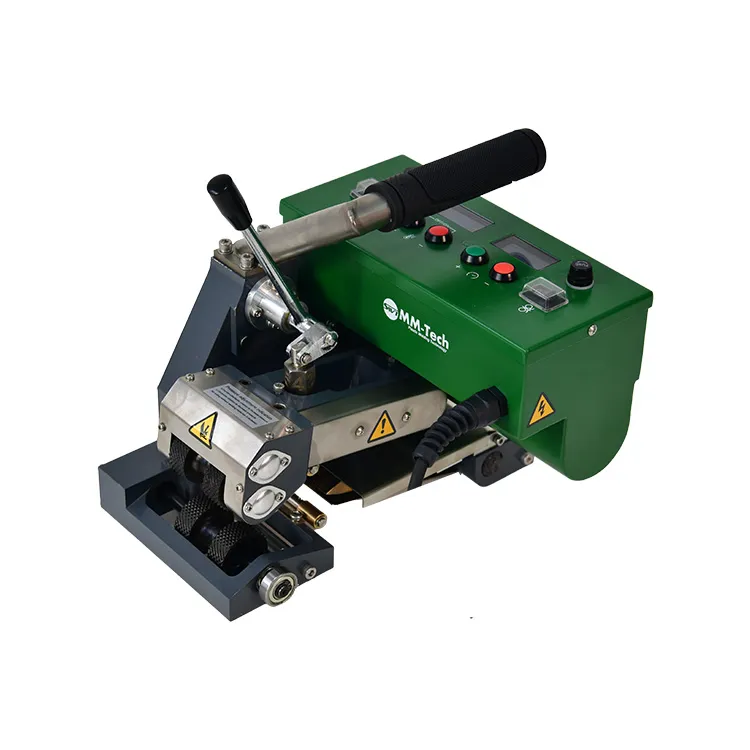

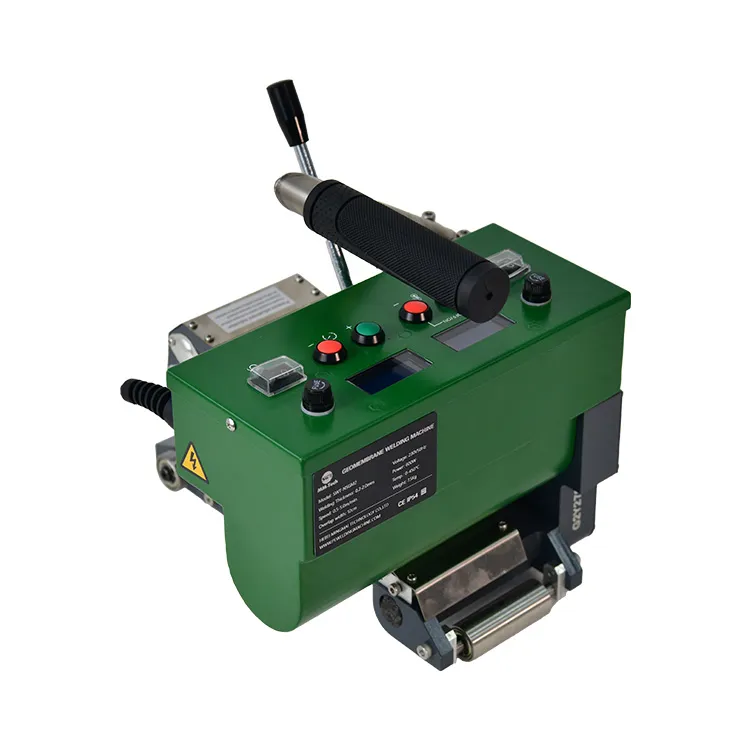

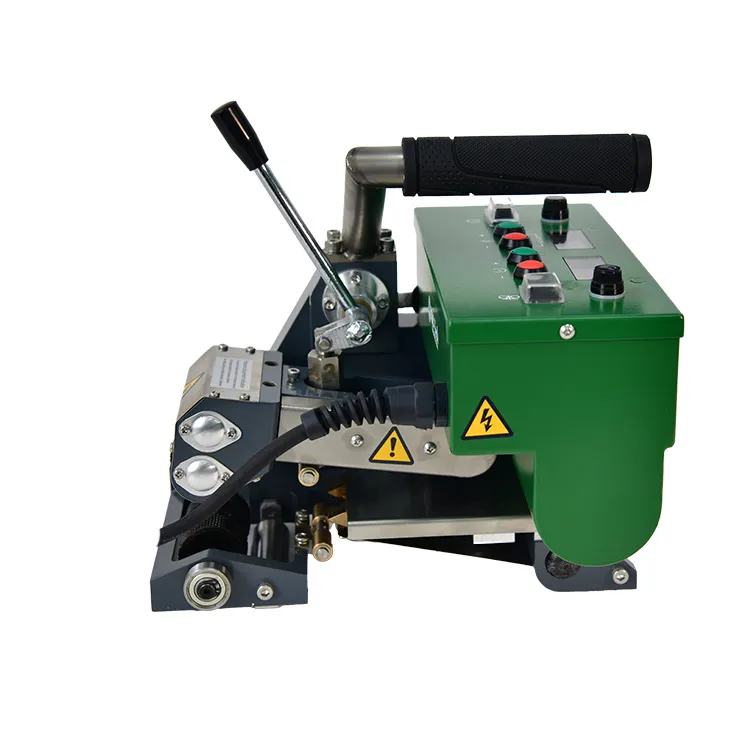

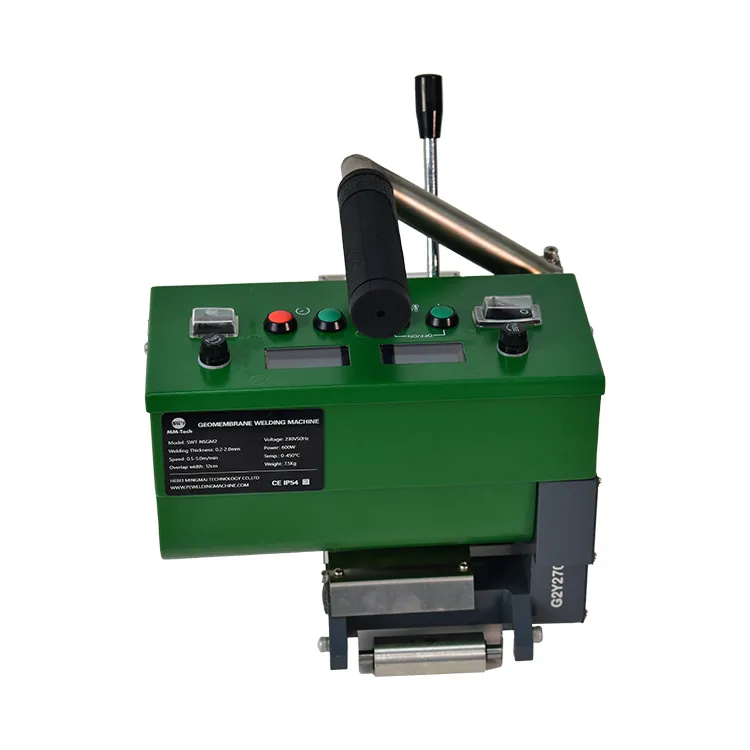

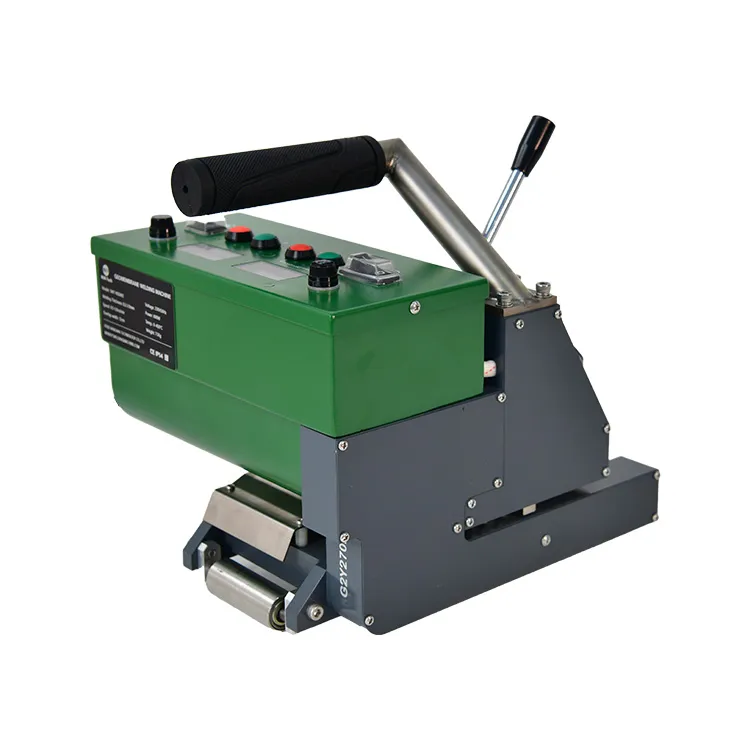

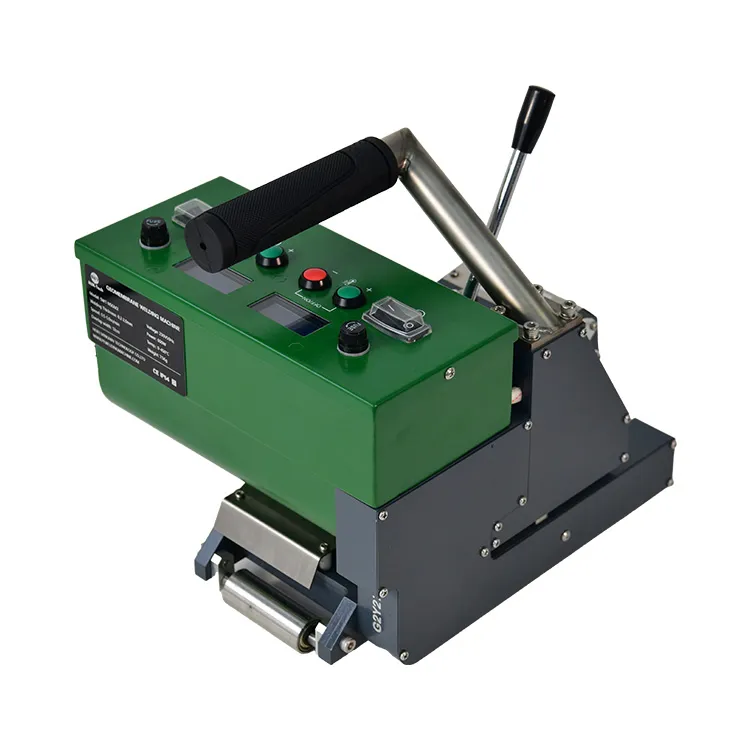

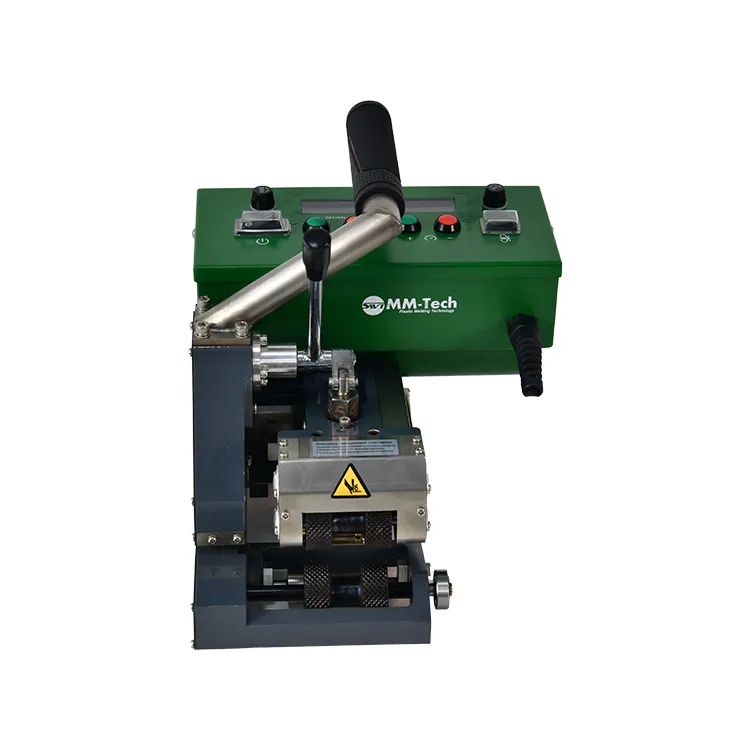

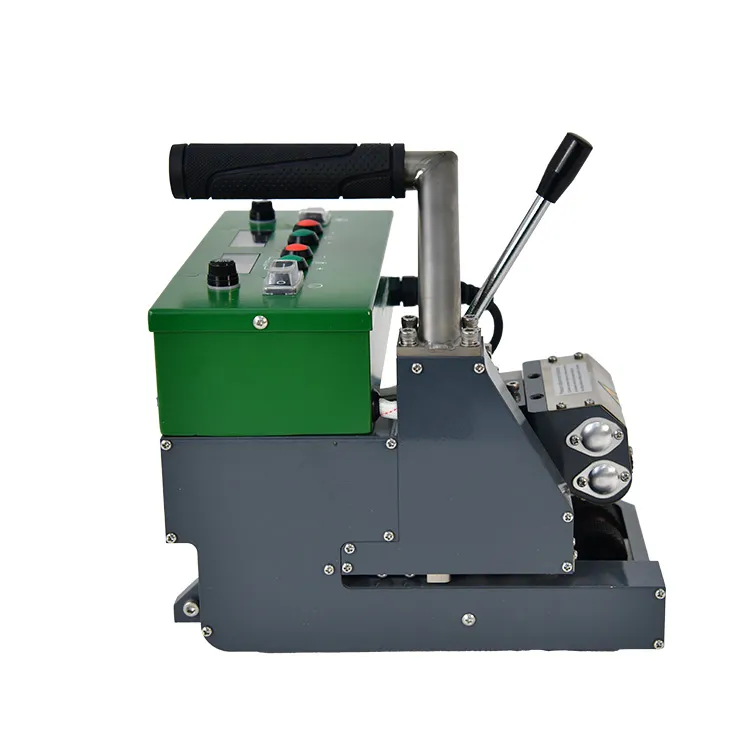

SWT-NSGM2 Geomembrane Hot Wedge Machine

This geomembrane welding machine represents a significant advancement in welding technology, as it is a new type of equipment developed by our company. This innovative machine is designed to weld a broad spectrum of geomembranes, with the capability to handle thicknesses ranging from a mere 0.2mm to 2mm. Its versatility is further enhanced by its suitability for welding a variety of hot-melt materials, including HDPE, LDPE, PP, PVC, and EVA, etc.

 button icon

Product Details

 button icon

Contact Now

Product Details

Product Video

Application

The Hot wedge machine is mainly used in Geo-technical engineering fields such as landfills, biogas digester, mining treatment, anti-seepage treatment of highway and railway tunnels, as well as aquaculture, reservoir dams, agricultural irrigation and other applications, etc. The ability to work with such a diverse range of materials makes it an indispensable tool for professionals in the geo-synthetic industry, offering a reliable solution for a wide array of applications.

Parameter Table

Input voltage

230V/120V

Frequency

50/60HZ

Power

 600W

Overlap width

12 cm

Welding speed

0.5-5 m/min

Temperature

50-450℃

Seam strength

≥85% Original

Seam width

15 mm*2, Interior Cavity 15 mm

Welding material thickness

0.2-2 mm

Feeding method

From same side

Digital display

Temperature & Speed

G./N.Weight

15.0 Kg/9.0 Kg

Packing size

320mm (L) × 320 mm (W) × 360 mm (H)

Product Features

Control System

The machine adopts advanced digital display screen, precise control and perfect protection function.

② Rack Structure

Advance “T” style jib design and pressure regulation structure.

③ Pressure Roller

Imported silicone pressure wheel, soft, heat-resistant and wear-resistant (geomembrane welding with a thickness of more than 1.0 mm is equipped with a special steel pressure wheel).

④ Heating System

Customized metal hot wedge with powerful heating elements which higher heating frequency and longer life.

Weldable Materials

  • PE

    PE

  • PP

    PP

  • PVC

    PVC

  • EVA

    EVA

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

FAQ Dam Liner Welding Machine

What Is A Dam Liner Welding Machine?

arrow icon arrow icon
It is a machine used to weld and seal liners for dams, ensuring water containment and durability.

What Materials Can It Weld?

arrow icon arrow icon
It can weld HDPE, PVC, and other geomembranes commonly used in dam liners.

What Are The Key Features?

arrow icon arrow icon
It offers precise temperature control, adjustable speed, and strong, reliable seams for long-lasting performance.

Where Is It Used?

arrow icon arrow icon
Primarily used in dam construction, water reservoirs, and containment projects.

How Do I Maintain A Dam Liner Welding Machine?

arrow icon arrow icon
Regularly clean the machine, inspect the welding area, and check settings to ensure consistent performance.
